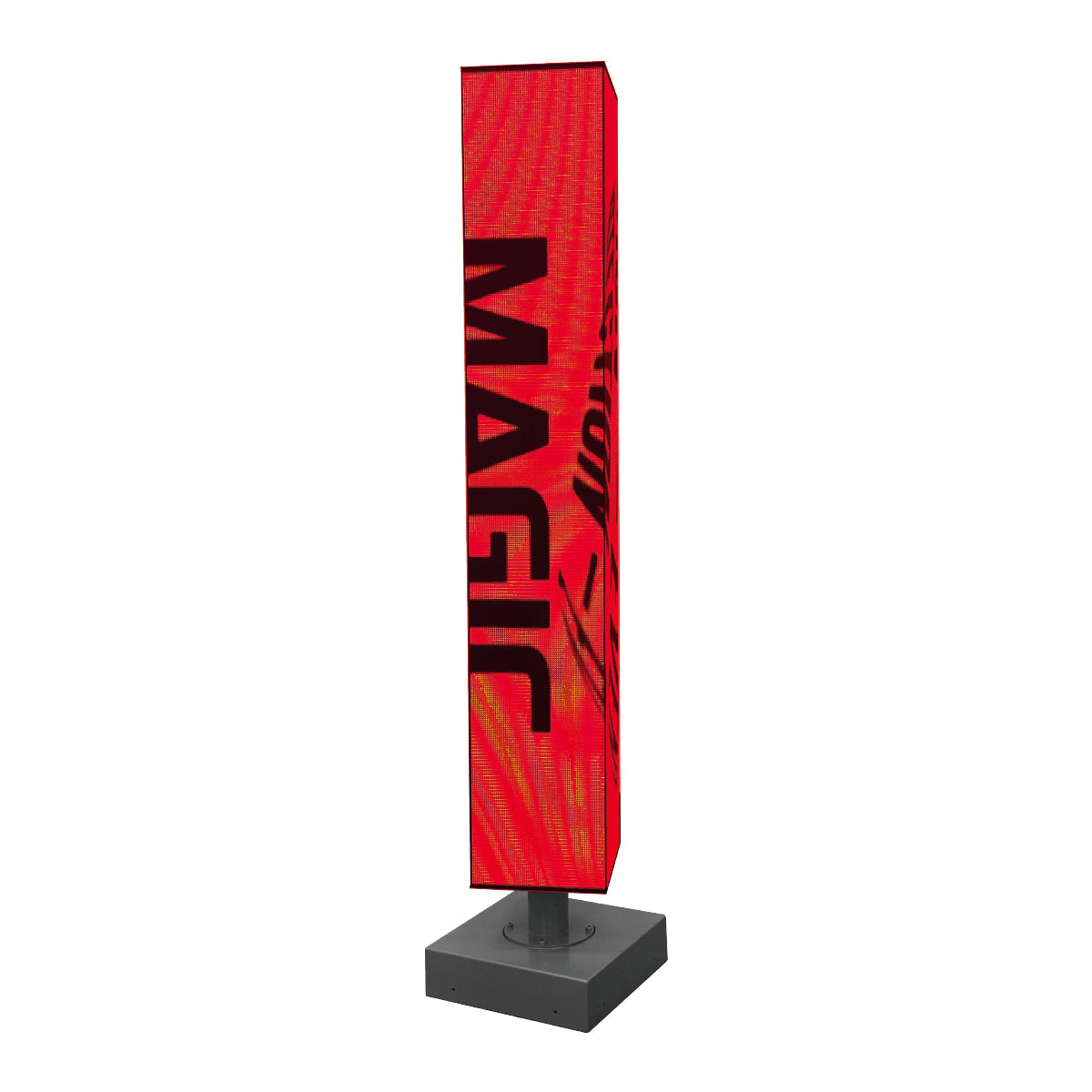

Rotating LED Display Column – SR18/SR20/SR25 Series

Rotating LED Display Column – SR18/SR20/SR25 Series

The Rotating LED Display is an innovative vertical signage solution designed to captivate audiences in retail, exhibition, and high-traffic public areas. Available in multiple pixel pitches (P1.86 / P2.0 / P2.5), this series offers brilliant image clarity, seamless text and video playback, and reliable Ethernet + WiFi signal integration. Its sleek rotating structure and rear maintenance design provide a modern and easy-to-service experience, while a 100,000-hour lifespan ensures long-term performance.

View full details

SPECIFICATIONS

Parameter SR18-1X3 SR20-1X3 SR25-1X30
Pixel Pitch (mm) P1.86 P2.0 P2.5
Display Resolution 516×344 640×320 384×256
Pixel Density (dots/m²) 270,420 250,000 160,000
Brightness (nits) 600–1000
Viewing Distance >1.8 m >2.0 m >2.5 m
Cabinet Size (mm) 960×160×160
Weight (kg) 13
Power Consumption (W) 120 (avg)
Lifespan (hours) 100,000
Input Power 110V / 220V Switchable
Signal Interface Ethernet Port + WiFi
Maintenance Rear Maintenance
Additional Features Text, Video, Time Display
